BMW F90 M5 Eventuri V2 Carbon Fiber Intake System

Acceleration Performance: 60–130 mph time reduced by 0.22 seconds
Airflow Improvement: Max flow rate per airbox at 28″ H₂O — Stock: 620 CFM | Eventuri V2: 736 CFM

---

Unleash True Performance for Your BMW F90 M5

Transform the driving experience of your BMW F90 M5 with the Eventuri V2 Carbon Fiber Intake System — engineered through extensive real-world testing and advanced CFD (Computational Fluid Dynamics) simulations. This upgraded V2 design delivers exceptional performance, sound, and reliability while maintaining optimal intake air temperatures (IATs) under every condition.

---

Precision-Engineered for Maximum Efficiency

The new V2 intake system features sealed carbon fiber filter housings designed to stabilize intake temperatures, even during idling or stop-and-go traffic. Coupled with high-flow front scoops and gold heat-reflective shields, the Eventuri V2 ensures unrestricted cold air delivery directly to your engine — minimizing heat soak and maximizing efficiency.

Key benefits include:

• Over 30% larger inlet tube area than the factory intake, allowing your turbos to breathe easier.

• Gold-lined heat shields with built-in flow guides for optimal cold air direction.

• Continuous carbon tubing that eliminates restrictive OEM rubber hoses for smoother airflow.

---

Proven Performance Gains

Independent Vbox testing on a stock BMW F90 M5 confirmed real-world results:

That’s a 0.22-second improvement with no software tuning — pure mechanical efficiency.

---

Why Choose the Eventuri Difference

The Eventuri system isn’t just another cone filter with a heat shield. Its patented carbon fiber Venturi housing creates an aerodynamically optimized airflow path, maintaining laminar flow and reducing turbo drag. Each intake is built around bespoke Gen 2 high-flow filters, engineered to deliver consistent velocity and smooth transition into the turbo inlets.

Performance advantages:

1. Reduced Turbo Drag — Larger intake volume allows freer breathing.

2. Smooth Airflow Path — Venturi housings maintain laminar flow for stable pressure.

3. Low Intake Temperatures — Front scoops feed cold air directly into the intakes.

---

Technical Design Highlights

• Integrated Carbon Pods: Reverse-mounted filters with carbon housings for a seamless airflow transition.

• Increased Internal Volume: Cross-sectional area at the strut brace expanded by 31% (Stock 6487 mm² → Eventuri 8497 mm²).

• Patented Venturi Geometry: Accelerates airflow while maintaining laminar conditions.

• Full Carbon Shrouds: Seal the housings from engine heat while allowing front airflow from the scoops.

• Gold Heat Shields & Air Ramps: Laser-cut, reflective shields with built-in ramps guide fresh air straight to the filters.

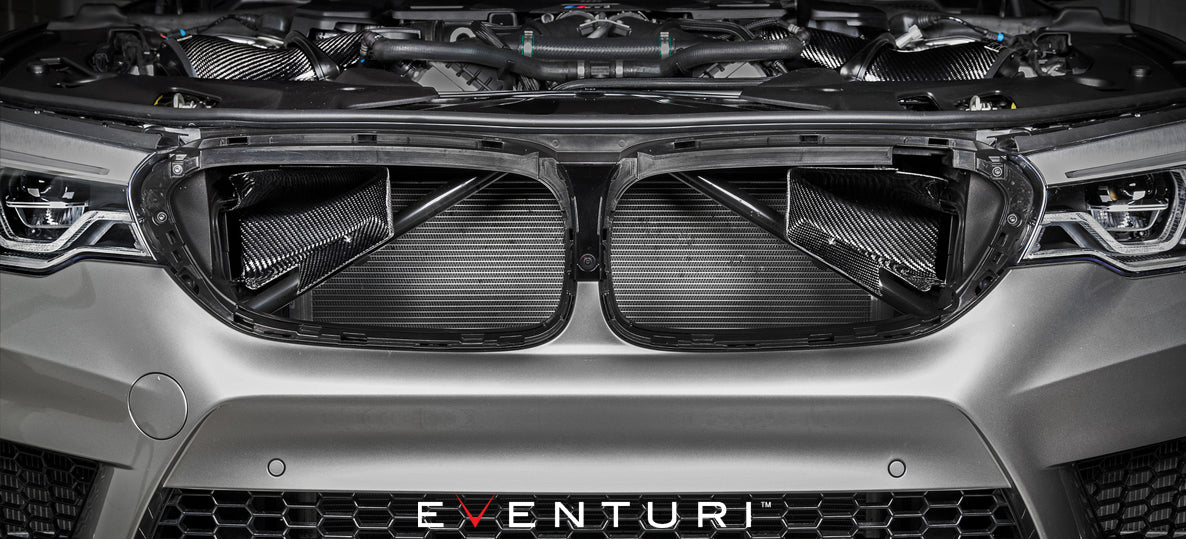

• Carbon Front Scoops: Precisely contoured to channel maximum cold air from the front grilles into the intake ducts.

---

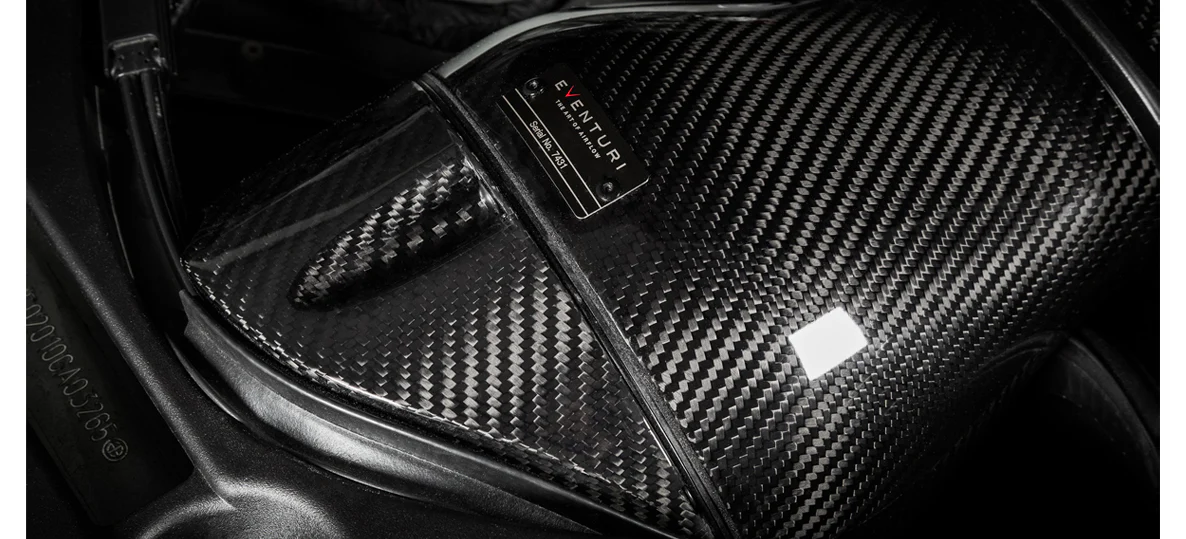

Premium Build Quality

Each Eventuri component is crafted from prepreg carbon fiber, ensuring durability, strength, and stunning aesthetics under the hood. The system fits precisely through the M5’s strut braces, allowing the intake to move naturally with the engine — eliminating flex-points and unnecessary restrictions found in OEM systems.

---

Key Specifications

• Compatible with: BMW F90 M5

• Material: Prepreg Carbon Fiber with Gold Heat Reflective Backing

• Design: Patented Venturi Flow System

• Performance Gain: 60–130 mph reduced by 0.22 sec (stock tune)

• Flow Rate: +18.7% increase vs. stock

---

Experience the Eventuri Advantage

If you’re looking for the best intake system for the BMW F90 M5, the Eventuri V2 stands in a class of its own. With superior craftsmanship, patented design, and proven power gains, it delivers both performance and aesthetics worthy of the M badge.

Upgrade your F90 M5’s airflow today — experience sharper throttle response, increased turbo efficiency, and the unmistakable sound of precision-engineered induction.
